U.S. BUILT MOROOKA MST1500VD FEATURES DOT-APPROVED WIDTH FOR PERMIT-FREE TRANSPORT
The U.S.-built Morooka MST1500VD sits right in the middle of our carrier range, offering our customers the perfect combination of payload and performance. All MST1500VD models made in the USA now ship at the DOT-approved width of 8 ft. 6 in., meaning that you will not require a special permit to transport it to your next jobsite.
The MST1500VD features a heated and air conditioned ROPS-certified cabin, backup camera, video information display, remote mirror, and easy-to-use joystick control.
MST1500VDs come standard with a dump bed that easily converts into a flatbed by removing the sideboards and tailgate.
- - Hydrostatic transmission
- - Rubber tracks — faster than steel tracks, with lower ground pressure
- - Robust, powerful CAT® C7.1 225 hp T4 final engine
- - Easy maintenance
- - Industry’s best dealer, parts and service network
- - 1 year/1,000 hour warranty
- - Operator-friendly and safe ROPS canopy/cabin
- - Can be fabricated to your specs on request — call for details
| Morooka Dimensions | 1500VD |
|---|---|
| Length | 17' 11" |
| Width | 8' 6" |
| Height | 9' 6" |
| Min. Ground Clearance | 20" |
| Gauge | 5' 11" |
| Track Width | 28" |
| Length of Dump Bed | 10' 2" |
| Width of Dump Bed | 7' 3" |
| Machine Weight | 22,040 lbs. |
| Morooka Dimensions | 1500VD |
|---|---|
| Fuel Cap. (gal.) | 39.6 gal. |
| Engine Mfg. / Model | CATERPILLAR® 7.1 |
| Horse Power | 225 |
| Transmission | HST |
| Maximum Load | 15,435 lbs. |
| Travel Speed (Low - High) | 4.7 - 6.8 mph |
| Ground Pressure (empty) | 2.4 psi |
| Ground Pressure (loaded) | 3.9 psi |

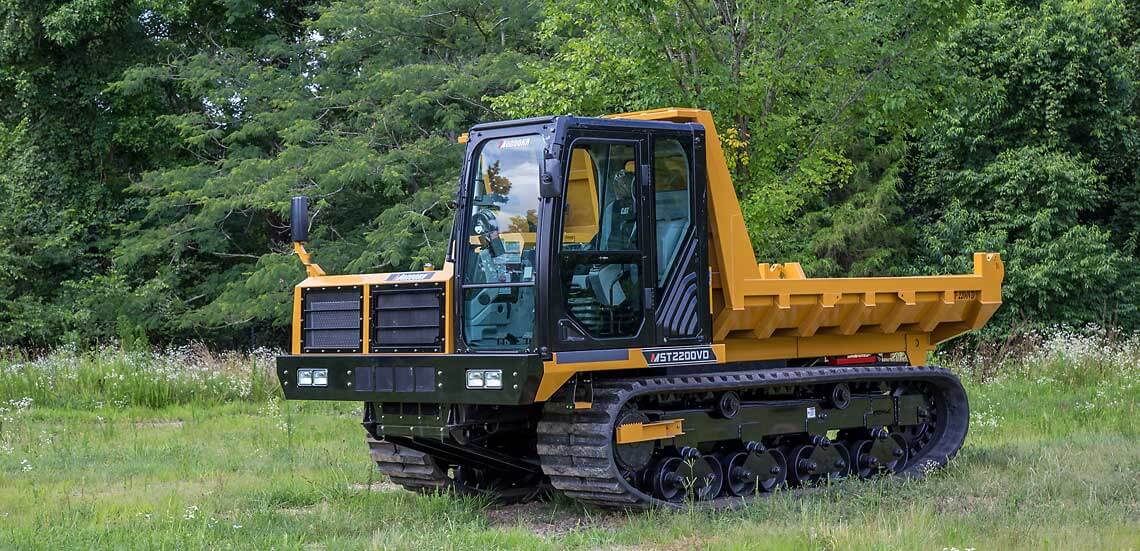

U.S. BUILT MOROOKA MST2200VD IS NORTH AMERICA’S MOST POPULAR RUBBER TRACK CARRIER!
The U.S. built Morooka MST2200VD is our most popular model in the North American market primarily because the platform is so versatile. Whether used as a dumper or carrier, it easily handles a maximum payload and has demonstrated its versatility on pipelines, construction sites and a host of other applications.
The MST2200VD features a heated and air conditioned ROPS-certified cabin, backup camera, video information display, remote mirror and easy-to-use joystick control.
MST2200VDs are available with either a dedicated dump bed or a versatile flat bed. Let us know what you need for your application.
- - Hydrostatic transmission
- - Rubber tracks — faster than steel tracks, with lower ground pressure
- - Robust, powerful CAT® C7.1 250 hp T4 final engine
- - Easy maintenance
- - Industry’s best dealer, parts and service network
- - 1 year/1,000 hour warranty
- - Operator-friendly and safe ROPS canopy/cabin
- - Can be fabricated to your specs on request — call for details
| Morooka Dimensions | 2200VD |
|---|---|
| Full Length | 20' 2" |
| Full Width | 9' 7" |
| Height | 10' 5" |
| Min. Ground Clearance | 15" |
| Gauge | 6' 9" |
| Track Width | 30" |
| Length of Dump Bed | 11' 10" |
| Width of Dump Bed | 8' 7" |
| Machine Weight | 31,820 lbs. |
| Morooka Dimensions | 2200VD |
|---|---|
| Fuel Cap. (gal.) | 65 gal. |
| Engine Mfg. / Model | CATERPILLAR® C7.1 |
| Horse Power | 250 |
| Transmission | HST |
| Maximum Load | 24,255 lbs. |
| Travel Speed (Low - High) | 8 mph |
| Ground Pressure (empty) | 3.1 psi |
| Ground Pressure (loaded) | 5.7 psi |

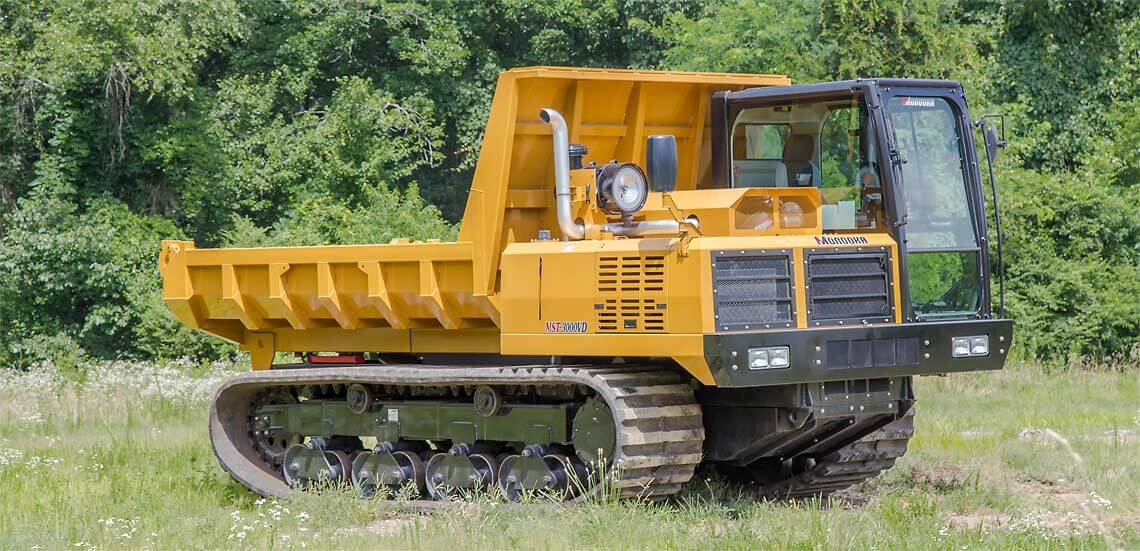

THE U.S. BUILT MOROOKA MST3000VD IS MADE TO TACKLE THE BIGGEST JOBS
The U.S. built Morooka MST3000VD is the largest rubber track carrier in our line-up. Biggest engine, biggest tracks, biggest load capacity. Popular on the pipeline and elsewhere, it is number one in the rental market as well.
The MST3000VD is powered by a muscular Cummins® QSL9 engine and features a heated and air conditioned ROPS-certified cabin, back-up camera, video information display, remote mirror, and easy-to-use joystick control.
MST3000VDs are available with either a dedicated dump bed or a versatile flat bed. Let us know what you need for your application.
- - Hydrostatic transmission
- - Rubber tracks — faster than steel tracks, with lower ground pressure
- - Robust, powerful Cummins® QSL9 325 hp T4 final engine
- - Easy maintenance
- - Industry’s best dealer, parts and service network
- - 1 year/1,000 hour warranty
- - Operator-friendly and safe ROPS canopy/cabin
- - Can be fabricated to your specs on request — call for details
| Morooka Dimensions | 3000VD |
|---|---|
| Length | 20' 2" |
| Width | 10' 5" |
| Height | 10' 4" |
| Min. Ground Clearance | 20" |
| Gauge | 7' 4" |
| Track Width | 31.5" |
| Length of Dump Bed | 12' |
| Width of Dump Bed | 8' 2" |
| Machine Weight | 33,140 lbs. |
| Morooka Dimensions | 3000VD |
|---|---|
| Fuel Cap. (gal.) | 75 gal. |
| Engine Mfg. / Model | CUMMINS® QSL9 |
| Horse Power | 325 |
| Transmission | HST |
| Maximum Load | 33,016 lbs.. |
| Travel Speed (Low - High) | 5 - 7.5 mph |
| Ground Pressure (empty) | 2.6 psi |
| Ground Pressure (loaded) | 4.8 psi |
